Lovelace Touchpad Card for Home Assistant

Control your PC or LG webOS TV from Home Assistant with a touchpad, keyboard input, and volume controls.

If you like this project, please consider giving it a ⭐ on GitHub:

Features & gestures

One-finger move; tap/double-tap = left/double click; press-and-hold then drag to select/drag.
Two-finger scroll with configurable multiplier.
Two-finger short tap = right click.
Keyboard panel for text input plus arrows/Home/End/PageUp/PageDown.
Built-in volume controls (up/down/mute).
Speed toggles x2/x3/x4 (one active at a time).
Remembers selected toggles (speed, lock, keyboard panel) per view.
Works over LAN WebSocket (ws://...); switch to wss:// for remote.

HACS → ⋮ → Custom repositories → add
https://github.com/michalowskil/lovelace-touchpad-card (Type: Dashboard)
or click:
Install Lovelace Touchpad Card.
Resource is added automatically as /hacsfiles/lovelace-touchpad-card/touchpad-card.js.
Hard refresh the browser if needed.

Download touchpad-card.js from the latest release and place it under
config/www/touchpad-card/touchpad-card.js.
Add a resource in Edit Dashboard → Manage resources:
/local/touchpad-card/touchpad-card.js (type: JavaScript module).
Hard refresh the browser.

Add the card in the UI and configure everything from the visual editor.

Download touchpad-server.exe from the latest release on GitHub.
Run:
```
touchpad-server.exe --host 0.0.0.0 --port 8765
```
- Starts directly in the system tray. Double-click the tray icon (or use the first menu item) to show/hide the log window. Closing/minimizing that window only hides it; the server keeps running.
- SmartScreen may show Windows protected your PC because the file is unsigned. Click More info → Run anyway, or build from source yourself if you prefer.
- Host and port are optional; defaults are 0.0.0.0 and 8765.
Allow it through Windows Firewall on first run so the card can connect.
To auto-start, place a shortcut to touchpad-server.exe in Startup or create a scheduled task.
Logs are written to touchpad-server.log next to the executable. Use the tray icon to view them live.

In Home Assistant go to Settings -> Add-ons -> Add-on store -> … -> Repositories and add
https://github.com/michalowskil/lovelace-touchpad-card.
Install webOS Pointer Bridge from the add-on list.
Open the add-on configuration and list your TVs. Example:
```
tvs:
  - name: livingroom
    host: 192.168.0.129
    listen_port: 8777
    tv_port: 3001
    use_ssl: true
  - name: bedroom
    host: 192.168.0.6
    listen_port: 8778
    use_ssl: true
```
- listen_port is where the Lovelace card connects. The add-on runs in host network, so use your HA host IP.
- Client keys are stored per TV in /data/keys/<name>.json and survive restarts.
- origin is optional; leave it unset/empty unless your TV rejects the default. If needed, set it to https://www.lge.com, or to "" to send no Origin header.
Start the add-on and enable Start on boot and Watchdog if desired.
In each touchpad card set wsUrl to the matching port (for example ws://homeassistant.local:8777).

Card sends deltas in requestAnimationFrame (throttled); backend accumulates scroll into wheel steps.
For remote/HTTPS, use wss:// (e.g., reverse proxy). LAN can stay ws://.

Card (frontend): latest v0.3.1 — see CHANGELOG.md. Highlights: editor numeric fields easier to edit; defaults shown so blanks fall back sensibly.
Windows backend: latest v0.4.0 — see backend/CHANGELOG.md. Highlights: Windows backend now ships as a tray-first touchpad-server.exe (no console); tray icon toggles the log window.
webOS add-on: latest v0.3.1 — see addon/webos-pointer-bridge/CHANGELOG.md. Highlights: smoother pointer at high sensitivity; gentler scrolling when multiplier is 1.

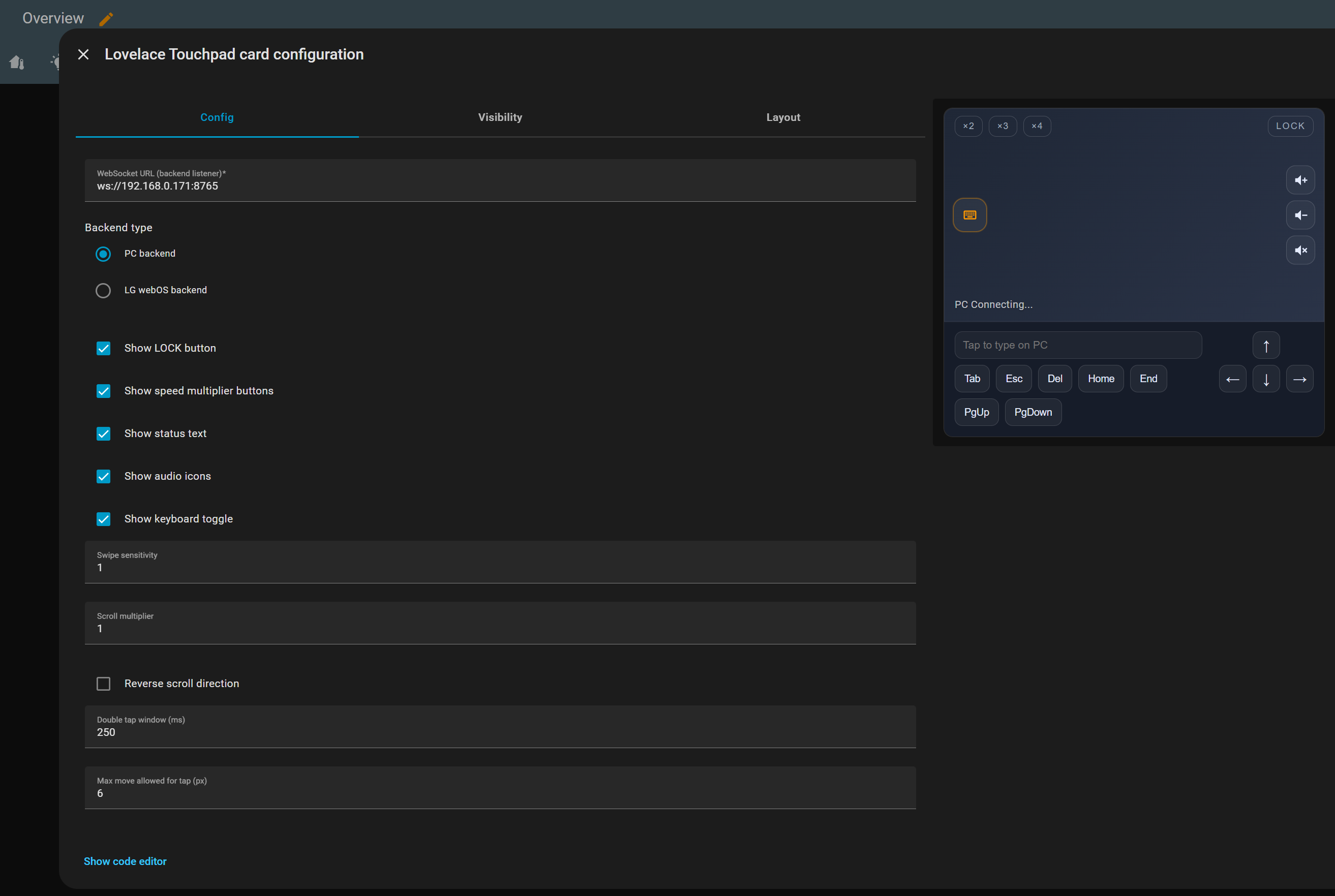

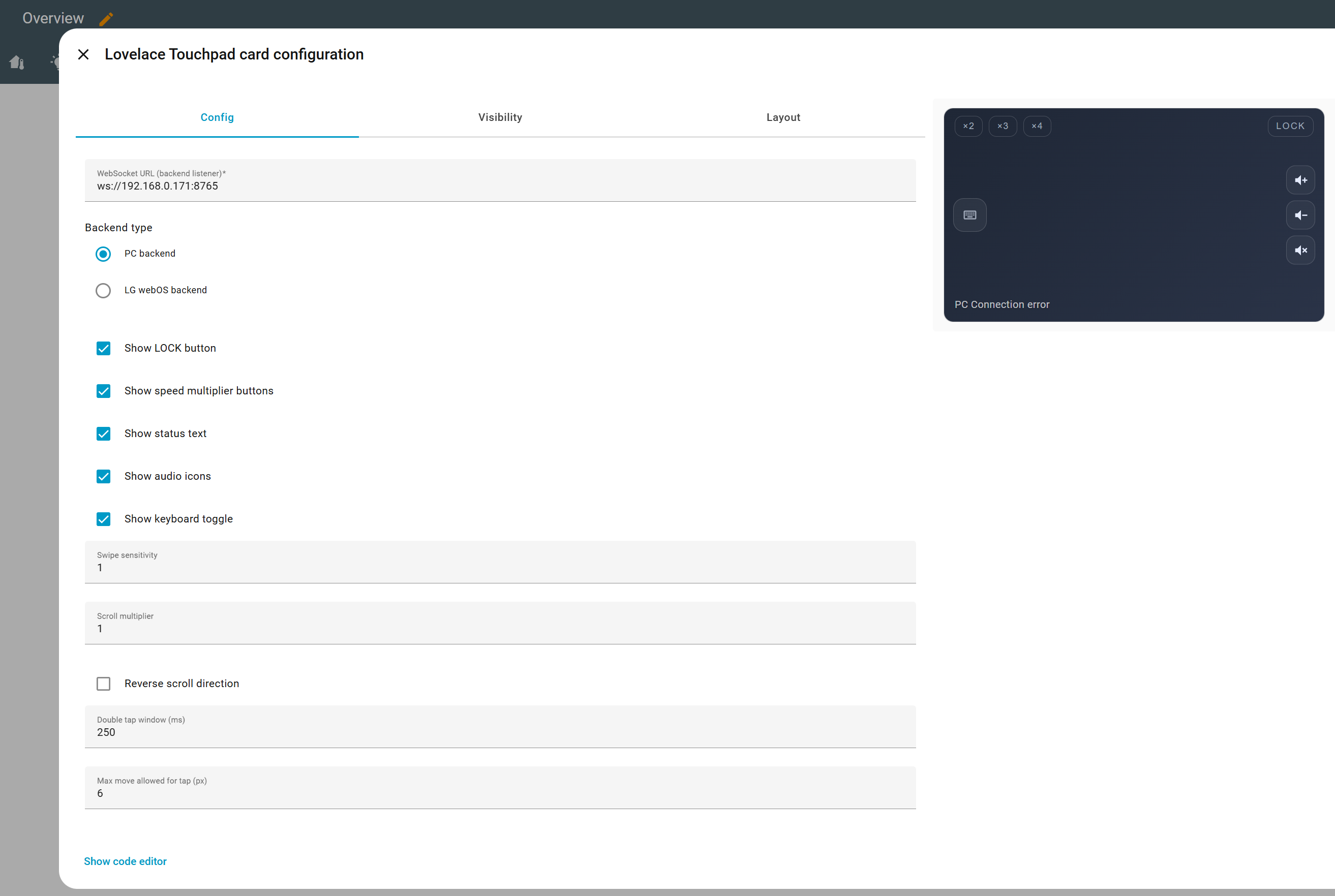

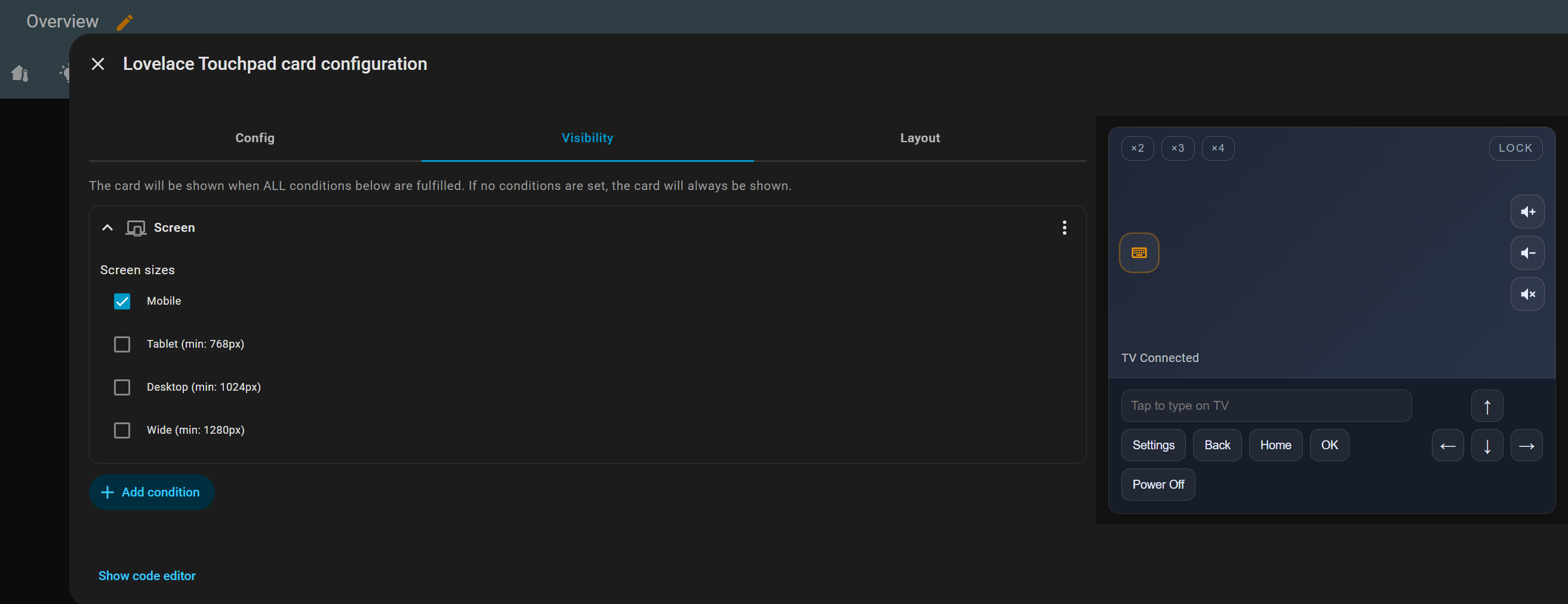

card configuration tray and log
